Create a Display 1 of DRC
100%
Description
Configure display panels as per attached.
Files
Updated by Thara S Pillai over 2 years ago

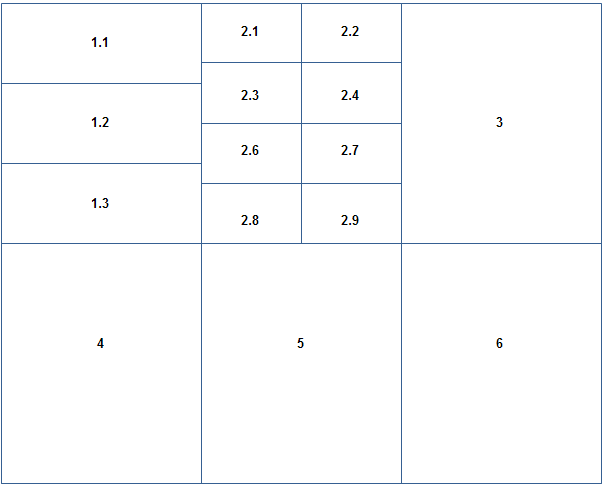

Panel Labels
Acoustic Plots - 1
Noise data - line plot
1/3 octave - Bar graph
Spectrogram - Heatmap
Text display- legend
Ocen met Plots - 2
CTD Temp vs Time Line over plot
CTD salinity vs Time Line over plot
CTD Sound Velocity vs Time Line over plot
CTD density vs Time Line over plot
CTD Depth vs Time Line over plot
AWS - Multi parameter line plot ( multiple y axis )
EMCM Rose plot Current speed, direction
Text display
Geofencing - 3
Indian peninsular map with perimeter circle
Point buoy current lat long
Live camera - 4
Buoy sensor health - 5
Battery draw
Storage draw
Temperature - thermometer draw
Sensor health - icons
FDFDL - 6
Text display
